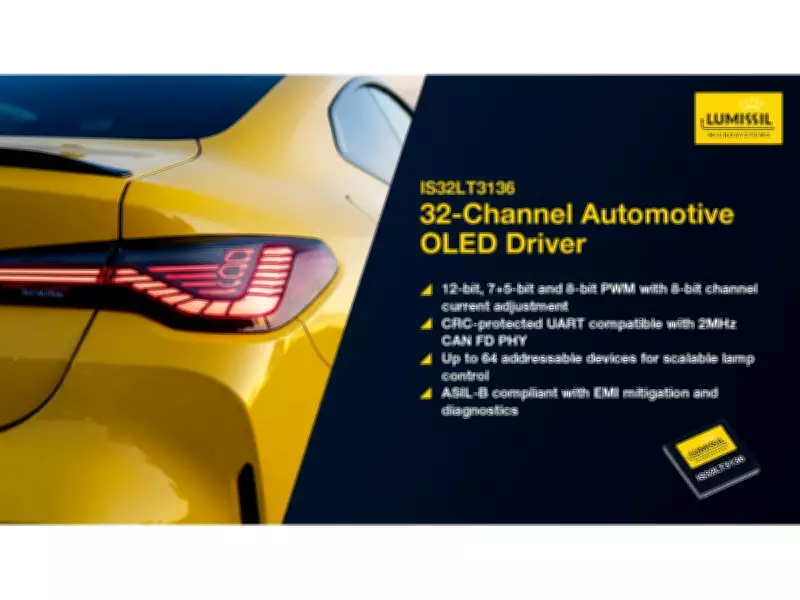

Lumissil Microsystems has introduced the IS32LT3136, a 32-channel linear LED driver with a UART interface, designed to support next-generation automotive OLED lamp designs. As the automotive industry transitions from static rear lighting to dynamic exterior communication with animated symbols, the IS32LT3136 offers a highly integrated solution for OLED rear lights, daytime running lights, and ambient lighting applications.
Key Features and Capabilities
The IS32LT3136 is engineered for common-cathode OLED panels and provides 32 independently controlled channels with an output capability of up to 22V, accommodating a wide range of OLED forward voltage variations. Each channel supports 12-bit PWM dimming and 8-bit channel current adjustment, enabling precise control of brightness and uniformity at the pixel or segment level. The device delivers output current from 1mA to 35mA per channel, with ±4% device-to-device current accuracy and ±4% bit-to-bit mismatch at 15mA, ensuring the precision required for premium rear-light signatures and segmented OLED effects.
Advanced Networking and Communication
The IS32LT3136 provides a robust foundation for lamp manufacturers seeking increased segmentation, personalization, and dynamic communication. Each device offers 32 channels and supports up to 64 addressable devices, enabling multi-segmented OLED lighting applications. Its UART interface, protected by CRC and compatible with a 2MHz CANFD PHY, ensures robust long-distance off-board communication. This allows modern automotive networks to centralize control intelligence in an ECU or domain controller while maintaining reliable communication with remote lamp modules.
EMI Mitigation and Visual Performance
The driver integrates several features to enhance electrical robustness and visual performance, including spread spectrum on the internal PWM clock, programmable slew-rate control, and 8-group phase delay. These features help reduce EMI, smooth channel switching transitions, and minimize inrush current and supply ripple. Additionally, the IS32LT3136 includes DCFB for automatic DC/DC VLED adjustment, optimizing supply voltage based on OLED load conditions. This is particularly beneficial for automotive lamp designers aiming for higher efficiency and tighter electrical control in thin, stylized OLED lamp assemblies.
Safety and Diagnostics
The IS32LT3136 is designed to meet the safety and diagnostic requirements of modern rear-lighting systems. Integrated protection and reporting functions include LED open/short detection, LED string short detection, programmable thermal current roll-off, CRC error detection, communication watchdog monitoring, and fail-safe mode support. Detected faults are stored in readable registers for host MCU access and indicated through the open-drain FAULTB pin. The device is developed in accordance with ISO 26262 and supports automotive applications targeting ASIL-B safety requirements.
